2. Getting Started

2.1. Linux Printing Components

The main components we will be using include:

2.2. Required Packages

All of the required programs and libraries are part of the standard Debian archive. You may download and install these packages with the usual Debian packaging tools. The following is a list of packages you need:

cupsys

CUPS server

cupsys-bsd

CUPS BSD commands

cupsys-client

CUPS client programs

foomatic-bin

LinuxPrinting.org printer support programs

samba

Samba SMB/CIFS server for UNIX

smbclient

Samba SMB/CIFS client for UNIX

gs-esp

ESP Ghostscript ( http://www.cups.org/ghostscript.php)

Not available as a Debian GNU/Linux 3.0 (a.k.a. woody) package, use "gs" instead.

a2ps

GNU A2PS ( http://www.gnu.org/software/a2ps/)

The following commands will install these packages. You will have to become root or use sudo to execute these commands:

apt-get update
apt-get install cupsys cupsys-bsd cupsys-client foomatic-bin samba smbclient gs-esp a2ps

Additional packages may be required for specific printers. For example, the hpijs package must be installed for many HP InkJet, DeskJet and LaserJet printers to function properly. The PPD files for these printers are identified by the string hpijs in their filenames.

2.3. CUPS Local Printer Configuration

The lpadmin command is used to configure printers. The following is an example of setting up a laser printer with CUPS. You will have to become root or use sudo to execute these commands:

/usr/sbin/lpadmin -p Laser -v parallel:/dev/lp0 -P /root/laser.ppd
/usr/bin/enable Laser
/usr/sbin/accept Laser
/usr/sbin/lpadmin -d Laser

Please note that bash has a builtin command called enable, so bash users must use the full path (/usr/bin/enable) to enable printers.

The first command creates a new printer called "Laser" that is connected to the first parallel port and is using the PPD file /root/laser.ppd. "Laser" is then enabled and told to accept jobs with the enable and accept commands. The last command sets "Laser" as the default printer.

If your printer is connected to a USB port or if you do not know the correct device-uri for your printer try running /usr/sbin/lpinfo -v to get a list of available printer devices.

Make sure your printer's page size and other options are set correctly by running /usr/bin/lpoptions -l. More detailed information about printer configuration is available in the CUPS documentation.

2.4. Linux Printing Basics

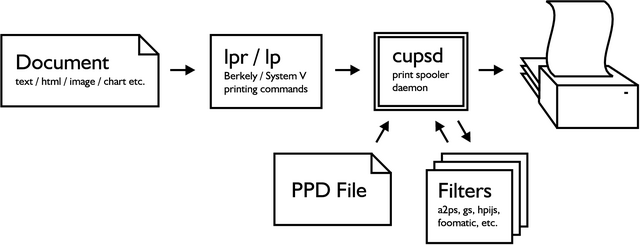

Figure 1. Printing Locally

Documents are spooled by using either lpr or lp followed by the file name. You may view the printer queue and check the printer status with the command lpstat -o or lpstat -p. To cancel a print job use either cancel or lprm followed by the job id.

The CUPS spooler daemon is called cupsd. It converts documents to PostScript, then converts them to a format native to the printer Figure 1. Printers that do not understand PostScript use a rasterized, or bitmap, format for documents. Rasterized formats can be much larger than the original PostScript, and will take longer to send to the printer.

Filters are programs used to convert documents from one format to another. The CUPS spooler will do its best to find a suitable filter for the documents you send. If no filter suitable for converting your document is installed you will receive an error similar to lpr: unable to print file: client-error-document-format-not-supported.

Many applications do not include filters for their documents formats. Documents created with these applications can only be printed from within the application itself, unless the document is exported to PostScript or another standard format.
