6. How CSPM displays data

CSPM displays histograms that provide information about system usage. The program has 8 display tabs for the different types of system information CSPM collects. These tabs are:

The key at the bottom of the histogram tables on each of the tabs tells how to interpret the various colors representing data in the tables.

Use the horizontal and vertical scroll bars to view any histograms that do not fit on the initial screen.

6.1. System Overview tab

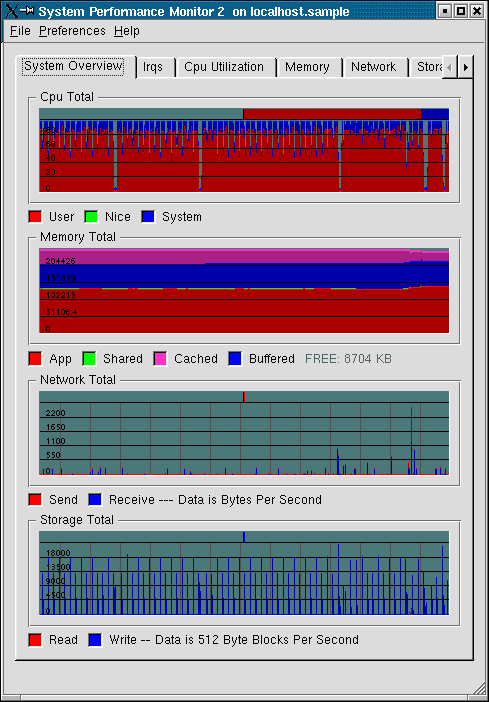

When CSPM starts up, the System Overview screen is displayed. The histograms on the System Overview screen show data for the total system, including CPU, memory, network, and storage usage. The following screenshot shows a sample view of a System Overview screen.

Below each histogram is a key that describes the data that is represented. For example, in the CPU total histogram, the red line represents user CPU usage, the green line represents commands run with a modified scheduling priority (nice), and the blue line represents system CPU usage.

6.2. IRQs tab

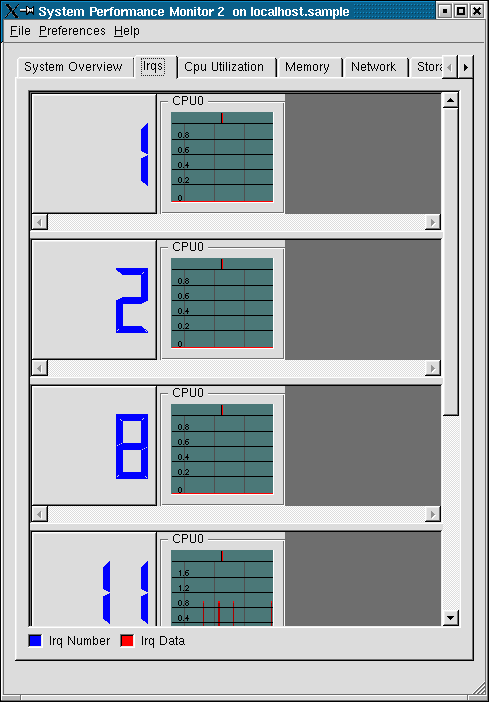

When you click the IRQs tab, a histogram opens for each IRQ line that runs to an ISA slot on the system. The following screenshot shows a sample view of the IRQs screen.

NoteNote


With Qt 3.0, the horizontal scroll bars on the Irqs tab does not work properly. This problem does not occur with Qt 3.1.

The large blue number to the left of the histogram is the number of the IRQ. The red line on each histogram represents the number of IRQs per second utilitized by the device connected to the IRQ's ISA slot.

6.3. CPU Utilization tab

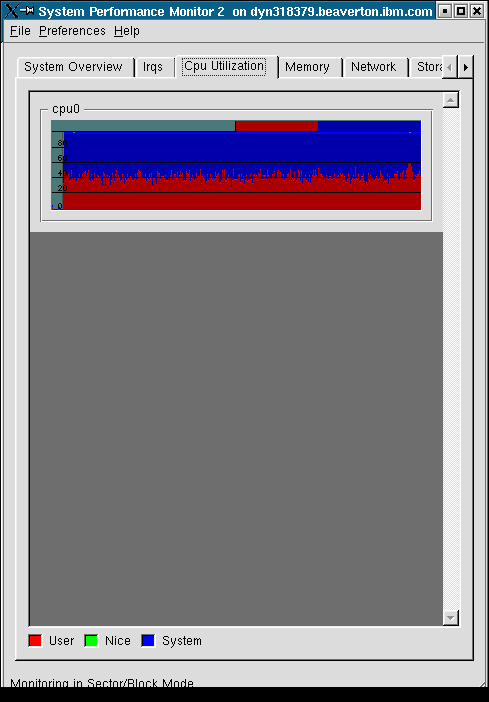

When you click the CPU Utilization tab, histograms open for each CPU on the system, as shown in the following screenshot:

The histograms show information about user (red), system (blue), and nice priority (green) command utilization.

6.4. Memory tab

The Memory tab is still under development. In a future release of CSPM, the Memory tab will graphically show how much memory processes use, from most to least.

6.5. Network tab

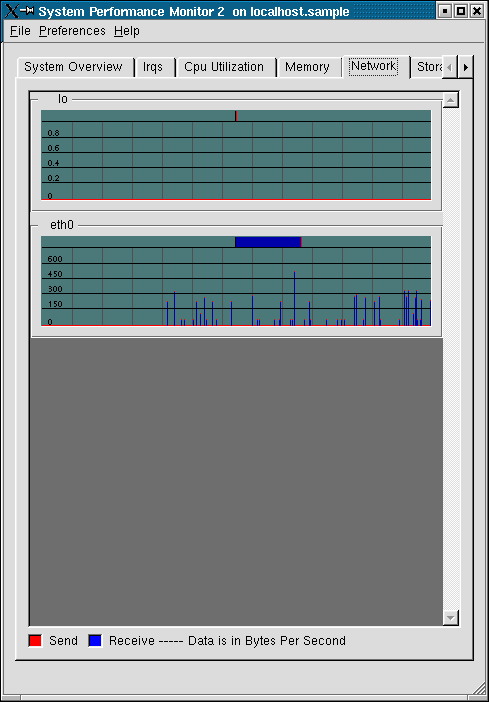

When you click the Network tab, histograms that show the amount of traffic on the system's loopback device and each network device are displayed, as shown in the following screenshot.

Sends are shown in red and receives are shown in blue.

6.6. Storage tab

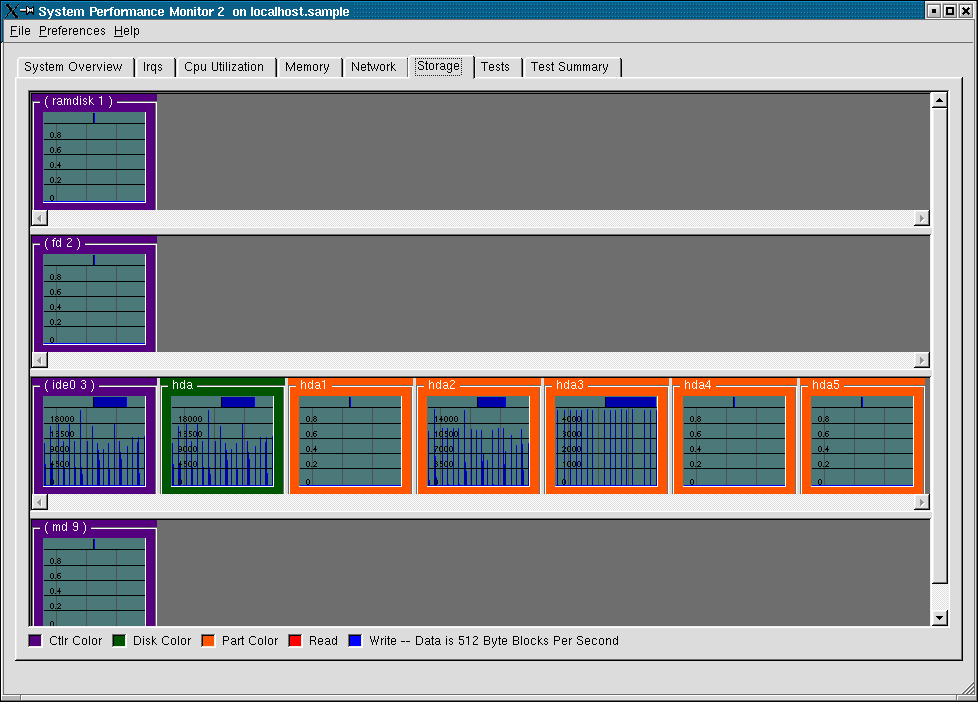

When you click the Storage tab, a collection of histograms opens that show data for controllers, disks, and partitions. The key at the bottom of the histograms tells which color of histogram box corresponds to which type of device.

The screenshot displays purple for controllers, green for disks, and orange for partitions. The red lines represent reads from the devices and the blue lines represent writes to the devices.

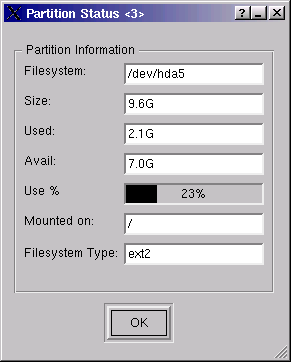

To see information about a partition (such as file system name, space used, and space available), right-click the partition's histogram and then left-click Properties. A Partition Status window opens that displays information about the selected partition.

6.7. Tests tab

The Tests tab opens a list of tests that can be run on the system and is useful, for example, for quality assurance personnel who need to load test systems when testing hardware or software.

6.8. Test Summary tab

The Test Summary tab contains test output and utilization numbers for test runs. You can print these test results and keep them for your records.
